Glucose syrup production equipment

Date:May 16, 2018/ Syrup production line/ Chat online

Glucose syrup production equipment

Glucose syrup production equipment

Description of glucose syrup production equipment:

All kinds of starch sugar will be got by corn starch hydrolysis with acid or enzyme.

The liquid products are maltose, glucose syrup, fructose syrup; The solid products are monohydrate dextrose, anhydrous dextrose, crystal fructose, maltodextrin, etc.

They are mainly used as a sweetener in food industry. Anhydrous dextrose can be used as medical injection, tablet embedding medium, sweeteners for medicinal syrup.

Glucose and maltose can produce sorbitol and maltitol after hydrogenation, which are used in the food and toothpaste to prevent dental caries.

In addition, the polyols can lead corn sugar products into petroleum field.

glucose syrup production equipment

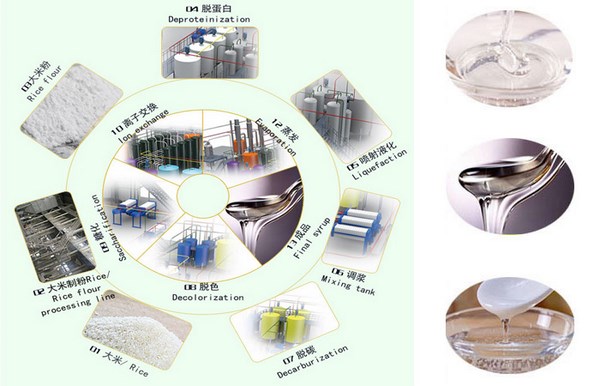

Glucose syrup production line

Below is the details of glucose syrup production equipment: (you can click here to see the syrup production video)

(1) Starch milk adjustment: The DS value of the starch that came from starch plant is adjusted to 28-32% and control a proper value of PH and temperature. Or adding a certain amount of water to achieve the above conditions then go to the next section.

(2) Liquefaction: Starch milk is sent to buffer tank then liquefied by jet cooker with the aid of enzyme.

(3) Saccharification: The liquefied material keeps reaction for a certain time under the action of enzyme. The required DE value of the glucose will be produced. Then the material is sent to the enzyme killer to kill the enzyme.

glucose syrup production equipment

Glucose syrup production equipment

(4) Filtration and decolorization: Glucose syrup gets through the filter to remove protein and other impurities, then at the appropriate temperature passes by active carbon to decoloring, finally send to filters to remove activated carbon and send to the next section.

(5) Evaporation: The glucose syrup is totally cleaned through safety filter machine then sent to evaporator for concentrating to reach the required DS as final product.

My company is the leading manufacturer of glucose syrup production equipment in China, we have our own factory and professional engineers team for glucose syrup production equipment technology support.We can make the glucose syrup from the raw material ( maize,broken rice,starch) directly. Welcome to visit my factory.
