Flash drying system for starch production

Flash drying system for starch production


Flash drying system for starch production. Henan Doing company can provide you high quality flash drying machine.This kind of flash drying system can used in all kinds of starch production.

Contact:
Ms Elina
Phone:
+86 135 2661 5783
WhatsApp:
0086 135 2661 5783
TEL:
+86-371-5677 1822
Email:
market@doinggroup.com
Skype:
elina881130

flash drying system

Flash drying system for starch manufacturing plant

Description of flash drying system

Flash drying system is the ideal equipment for tapioca starch production. Starch dried by this equipment features in clean appearance, glossy luster, smooth powder, and stable moisture while wheat gluten features in high water absoption,  excellent activity and original flavor.

Flash drying system can be designed and produced based on customers' requests on space and warehouse, which is convenient for installation, operation and maintenance.

Air speed in this flash drying system is continuously changed because of different section diameters of pulse tubes, therefore, heat transfer coefficient is high and mass materials can be dried well.

This equipment features in simple structure, easy operation, low investment, as well as compactness.

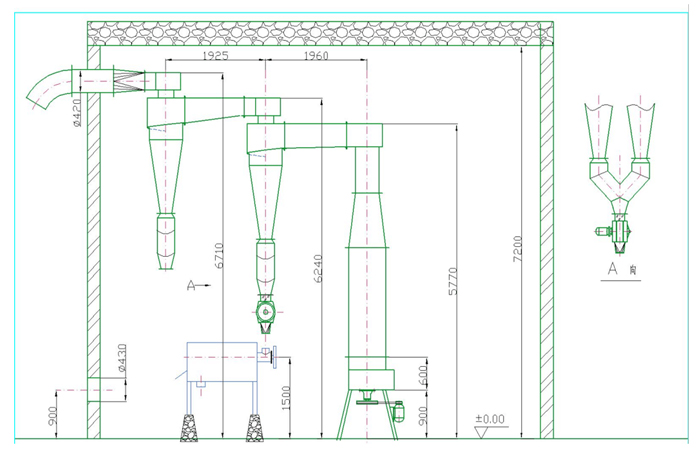

Structure of flash drying system

flash drying system

Structure of flash drying system



Working principle of flash drying system

Sludge, powder and granular material are in the state of suspension under the effect of high-speed hot air in this tapioca starch production. As flow speed is high, the wet tapioca starch particles suspended in air, the heat transfer surface and heat transfer coefficient of gas-solid is high, and drying time is short (most of the dry material less than 2 seconds), it is particularly suitable for drying of heat sensitive materials.

flash drying system

Flash drying machine

During the drying process, clean the air heater through the cold air from the wet starch after delivering the transport auger feeder into the air duct by the young wet starch mixture, are instantly dry, dry starch cyclone, discharging auger off air control exhaust, emissions into the atmosphere by the fan.

The machine can be controlled, both manual and automatic operation. When it is by automatic control, the exhaust gas temperature of automatic measure by water controlled will send back the signal to the previous feeding adjustable motor. By this way, the feeding capacity can be controlled. Also the output moisture content of tapioca starch production will be ensured.


Main technical specification of flash drying system

型号

Model

进料淀粉湿度Moisture of wet starch

出料淀粉湿度Moisture of product starch

淀粉产量

Starch capacity(t/h)

功率Power(kw)

DYFD -0.8

≤40%

12-14%

0.8

24.3

DYFD -1

≤40%

12-14%

1

26.6

DYFD -2

≤40%

12-14%

2

47.6

DYFD -5

≤40%

12-14%

5

123.4

DYFD -10

≤40%

12-14%

10

223.5

DYFD -15

≤40%

12-14%

15

321

DYFD -20

≤40%

12-14%

20

420

flash drying system machine

Flash drying machine

Characteristics of flash drying system

1. Using air instant drying principle, with the characteristics of high drying intensity.

2. Short drying time, low steam consumption and fast dewatering

3. High thermal efficiency and excellent quality of tapioca starch production

4. High drying intensity and strong dewatering ability

5. Simple structure, small area occupied and low investment

6. Negative pressure environment, clean and no pollution

7. Mature technology application in tapioca starch production

Application of flash drying system

DYFD Flash drying system is widely applied in the tapioca starch production which requires fast drying and heat sensitive powder. Slice material such as corn/wheat/potato, protein flour, rice bran, chemical industry and foodstuff, etc can all apply this drying system.
