Using high quality cassava equipment to produce high quality cassava flour, we are committed to the development of cassava deep processing equipment, experienced and skilled technical team. Through a series of processing, you can see how to process high quality cassava flour. By introducing the processing of cassava flour, you will have a more intuitive understanding of how to process high quality cassava flour.

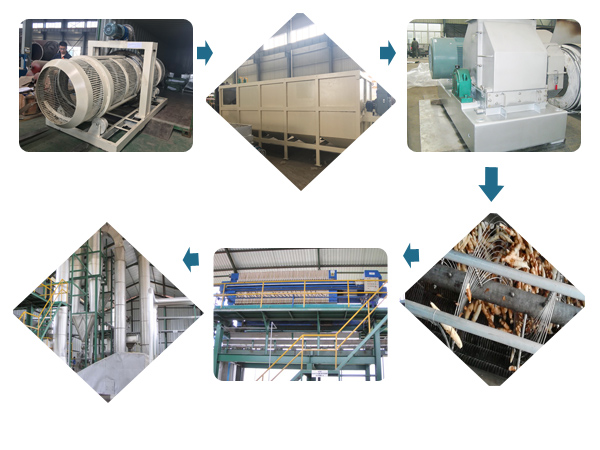

The process of making high quality cassava flour

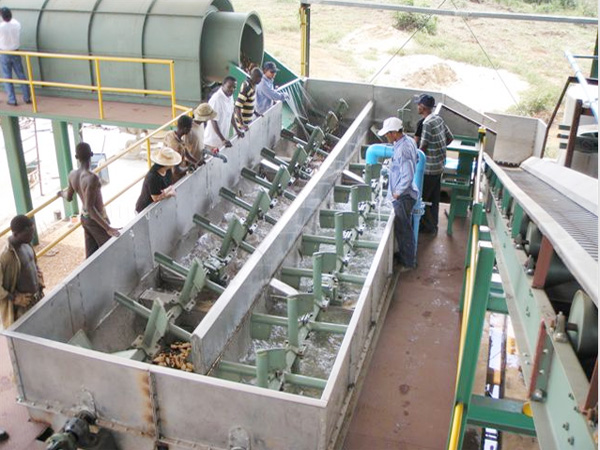

The first is the point of special equipment for cassava cleaning. The whole machine consists of a motor, reducer, tank, de-distribution, stone bucket, blade, drive shaft and so on. The width and length can be adjusted according to the output. The working principle is as follows: the material enters the washing machine from one side, the blade is rotated by the motor, the material is stirred, cleaned, and the material is pushed from one side to the other side to complete a cleaning cycle. To handle the cleaning function, the paddle cleaning machine can also perform certain peeling treatment on the material. Although the structure and principle of the machine is simple, the cleaning process is indeed the key to how to process high quality cassava flour. It is usually not necessary to equip with peeler during the processing of high quality cassava flour.

Cassava washing

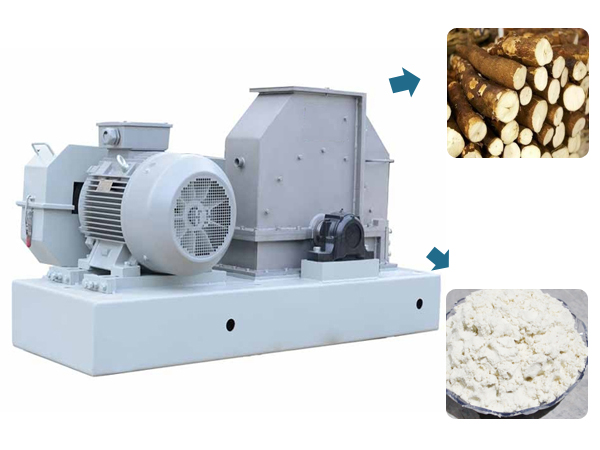

The second is the cassava grinding, it is good for breaking the cassava into pulp through the processing. This is the main part for how to process high quality cassava flour, once you get the better cassava pulp, you can get fine flour to meet the markets' requirements.

Cassava grinding

Then is the dehydration process of how to process high quality cassava flour, which is the subsequent better drying effect. Therefore, the working principle of plate and frame filter press: when the machine is pressed, the hydraulic station supplies high pressure oil, and the component chamber formed by the cylinder and the piston is filled with oil, and when the pressure is greater than the frictional resistance of the compression plate operation, The pressure plate slowly presses the filter plate. When the pressing force reaches the pressure value set by the pressure relief valve (displayed by the pressure gauge pointer), the filter plate, the filter frame, the relief valve begins to unload. At this time, the motor power is stopped off and the pressing action is completed. When retracting, the reversing valve is reversing, and the pressure oil enters the rod cavity of the cylinder. When the pressure can overcome the friction of the compression plate, when the resistance is reached, the compression plate begins to return.

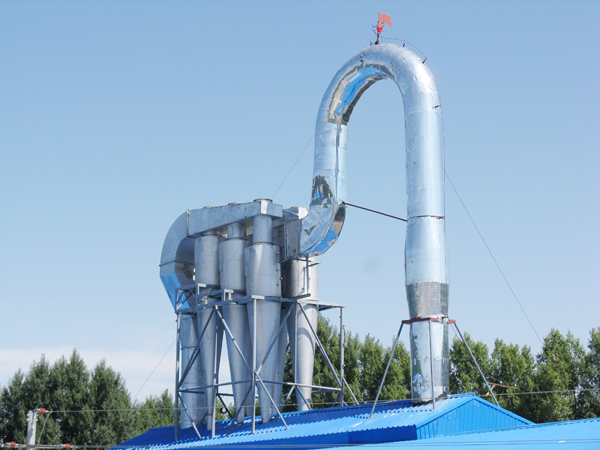

Cassava flour drying machine

Not only the market's great demand of how to process high quality cassava flour, but also related to the national government. High quality cassava flour is simply unfermented cassava flour. The desire to reduce dependence on importation and conservation of foreign exchange has increased the Federal Government’s drive to source for local alternatives to partially or fully substitute imported goods. Research institutes such as International Institute of Tropical Agriculture (IITA) and Federal Institute of Industrial Research, Oshodi (FIIRO) has for years researched on developing processed based technology to mechanize and produce high quality cassava flour. This has led to the development and of the process technology for production of High Quality Cassava Flour (HQCF).
