sweet potato starch making

Sweet potato starch making plant



Sweet Potato  are also known by other names, including "yam" and kumara in some country . The sweet potato root is rich in starchy.  Making sweet potato starch from sweet  potatoes is  .  The sweet potato starch is mainly used for making food. Sweet potato starch noodle is very popular in Asia country.



How to make starch  from  sweet potato ?

The sweet potato starch making process in sweet potato starch making plant comprises the steps such as sweet potato cleaning and washing , sweet potato wet milling , sweet potato juice separation, starch extraction, starch milk refining, dewatering of refined starch milk and starch drying.

sweet potato starch making



Sweet potato starch

The detail description of sweet potato starch making in sweet potato starch making plant:

1. Sweet potato cleaning of sweet potato starch making
Coarsely cleaning of sweet potatoes takes place during the transport of sweet potatoes to the scrubber by channel. In addition, before the scrubber, straw and stones separators are installed. The main cleaning is conducted in scrubber (different kinds of high specialized machines are used). The remaining stones, sludge and light wastes are removed at this step. Water used for washing is then purified and recycled back into the process.
sweet potato cleaning machine

Sweet potato cleaning machine

2. Sweet potato wet milling of sweet potato starch making

Most often the milling of sweet potato tubers is carried out by a hammer mill .  The purpose of this stage is disruption of cell walls, which therefore release as much  starch as possible to extract starch from sweet potato.

3. Sweet potato juice separation of sweet potato starch making
This allows the recovery full-value protein from juice and reduces the onerousness of water juice as a sludge.

4. Starch extraction of sweet potato starch making
After separation of sweet potato juice the pulp is directed to the washing starch station, to isolate the starch. Most used are stream-oriented washers. In these machines pulp diluted with water is washed with a strong stream of water to flush out the milk starch. The mash smuggling with water is a waste product – dewatered sweet potato pulp. Starch milk is contaminated by small fiber particles and the remaining components of the sweet potato juice – that’s why it is called raw starch milk.
sweet potato starch processing machine

Sweet potato starch processing machine

5. Starch milk raffination of sweet potato starch making
Raw starch milk is purified in the refining process. This involves the removal of small fibers from the starch milk and then the removal of juice water and starch milk condensation. For this purpose, the screens and hydrocyclones are commonly used. Hydrocyclones due to the low output (approximately 0.3 cubic meter per hour) are connected in parallel and works as multihydrocyclones. For the starch milk desanding bihydrocyclones are used. In order to prevent enzymatic darkening of potato juice the chemical refining of starch is carried out using sulfurous acid. Refined starch milk has a density of about 22° Be, which is about 38% of starch.

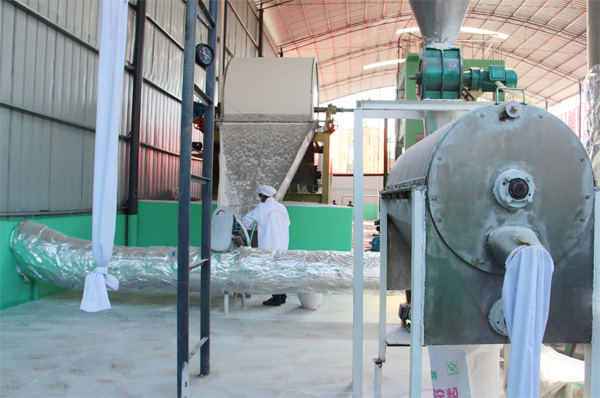

6. Dewatering of refined starch milk and starch drying of sweet potato starch making
It is a suspension of starch in water, which needs dewatering up to 20% of moisture. This is equivalent to the moisture content of commercial starch when stored. High temperature cannot be use in this process because of the danger of starch gelatinization which destroys granular structure. It may result in significant changes of the functional starch properties. Therefore, removal of excess water from milk shall be done only under conditions that prevent the gelatinization of starch.

Dewatering of refined starch milk is carried out in two stages. In the first stage the excess water is removed by means of a rotary vacuum filter. Secondly moist starch is dried, without starch pasting. For this purpose a pneumatic dryier is used. In this device moist starch (with water content 36 – 40%) is floating in strong and hot  air flow and then dried during 2 – 3 seconds. Then, the starch is separated from hot air in cyclones. Due to short time of high temperature drying and intensive water evaporation from the starch granules, its surface is heated only to 40 °C. Dried sweet potato starch contains about 12%~13% of water.

Our company is professional supply the complete sweet potato starch making plant machinery and equipment . If you want to start the sweet potato starch making business , pelase contact with us wit your detail requirement  .
