The cassava peeling and washing machine is suitable for sorting and cleaning various roots and stem materials, such as cassava and yam. The sand roller is used for conveying and cleaning, through the friction between the material and the emery roller to achieve the purpose. It can thoroughly clean the stains on the surface of raw materials.

Read also: What's the cost of cassava peeling machine in Nigeria？

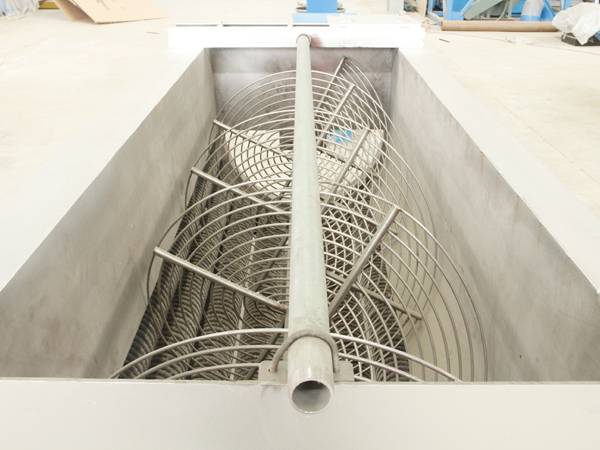

Cassava peeling and washing machine

The structure of cassava peeling and washing machine

The cassava peeling and washing machine is mainly composed of a frame, upper cover, motor, reducer, brush roll, spraying system, transmission system, and screw conveyor. And the parts which touch the material are all made of stainless steel material.

The frame and upper cover are the basic structure of cassava peeling and washing machine, the upper cover can be opened, but when working, it is normally closed to ensure cassava not be polluted.

The motor is used to provide power for cassava peeling and washing machinery. Reducer can control the running speed of cassava.

Cassava peeling and washing machine

Features of cassava peeling and washing machine:

1. High peeling rate: the cassava peeling and washing can peel off the hard cuticle of cassava layer by layer without damaging the inside. The peeling rate can reach more than 95%.

2. Saving water: the spray system design uses less water than direct wash.

3. Compact structure: though the cassava peeling and washing machine has a capacity of 1/2/3/5 t/h or larger, it only covers a small area.

4. Easy to operate and maintain: only one or two workers are needed to operate the cassava peeling and washing machine. Our sand roller is designed with sandpaper wrapped around the round roller. It only needs to change the sandpaper for long-term operation, instead of replacing the entire roller, reducing operating costs.

Operation of cassava peeling and washing machine:

(1) After connecting the power supply and the water pipe, the material is evenly put into the cassava peeling and washing machine for cleaning.

(2) Start the motor switches to make the equipment run normally and in the right direction.

(3) After the cleaning work is completed, open the discharge port switch, and the raw material completes the automatic discharge work.

(4) After the work is finished, sparkle the water with clean water and regularly clean the waste inside the box of cassava peeling and washing machine.

(5) The chain transmission part requires regular use of lubricating oil.

If you also have an interest in our cassava peeling and washing machine or other cassava garri processing machine, welcome your consultation. Henan Jinrui Company can not only supply you with the best machine at factory price according to your requirements but also provide you the plant design, technical installation instruction, worker training, factory visiting, etc.

• Introduction
• Parameter

Technical parameters of cassava peeling and washing machine:

Model	Capacity(t/h)	Power(kw)	Dimension(mm)	Weight(kg)
DYTP-40	0.5-1	3	3250*1050*1100	1200
DYTP-60	1-2	5.5	4250*1050*1100	2000
DYTP-80	3-4	7.5	5250*1050*1100	3000
