How to extract cassava starch?

Date:2018-10-23/ FAQ/ Chat online/ Technical support

How to extract cassava starch? The key to quality assurance of cassava starch is the dehydration and drying, so this article focuses on the two links of cassava starch.

cassava & cassava starchCassava & cassava starch

Cassava starch dehydration section in how to extract cassava starch will usually use the peeler centrifuge. The horizontal scraper discharge centrifuge is a continuous operation and intermittent operation of the filter centrifuge. The control mode is automatic control or manual control. The processes of feeding, separation, washing, dewatering, unloading and filter cloth regeneration during the operation of the centrifuge are generally completed at full speed, the single cycle time is short, the treatment volume is large, the dry filter residue and good washing effect. The dehydration in how to extract cassava starch can guarantee the effect of the subsequent drying process and the quality of the finished product.

The main motor drives the basket to rotate the full speed, material being fed into through a feed pipe. Under the centrifugal force, the liquid is discharged out of the basket through a filter screen and the holes of the basket, and then out of the machine through the tube for discharging the liquid, while the solid deposits in the basket as a ring layer of cake. For how to extract cassava starch , feeding is stopped after the fed material reaches the expected amount, further separation, and washing at the same time. After the washing and the separation, the scraper rotates automatically, scraping the solid and discharging it out of the machine through the sludge outlet. Then the screen is washed automatically, on the following another cycle begins.

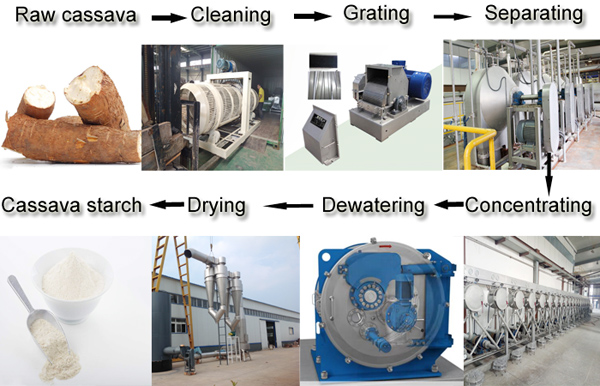

How to extract cassava starchHow to extract cassava starch

In the process of how to extract cassava starch, we have participated in the development over ten years with rich experience and best service.

The series of peeler centrifuge has two sets of design projects of how to extract cassava starch:

1.The machine adopts the whole adoption foundry, fuel tank and the machine to a whole, this kind of model structure tightly packed.

2.The machine is wholly to adopt the plank material welding, fuel tank and its separation. This kind of machine compares good for stability, the vibration is steady.

cassava starch extraction machinePeeler centrifuge

Flash dryer is a large-scale drying equipment in the way of how to extract cassava starch. It utilizes the principle of instant drying. It uses the rapid movement of hot air to drive the wet materials, so that the wet materials are suspended in the heated air, which strengthens the whole drying process and improves heat transfer. At the rate of mass, the material that has been dried by the airflow can be almost completely removed, and the dried material will not deteriorate, and the output can be significantly improved compared with the drying of the conventional dryer.

cassava starch extract machineCassava starch drying machine

The characteristics of the airflow flash dryer for how to extract cassava starch: high drying strength, low equipment investment, high degree of automation, good product quality. The drying time in the pipeline is extremely short (only 0.5s-2s). Therefore, automation can be accomplished. The product is not in contact with the outside world and is polluted with fine quality. The basic supply of equipment and the basic selection of the heat source are composed of air filter, heater, feeder, drying pipe, fan and cyclone separator. Users can add dust collectors or other auxiliary equipment as needed for how to extract cassava starch. The elementary type of negative pressure airflow drying equipment is suitable for materials with loose shape, small viscosity and finished products of granules and powder.

Above all is the two links for how to extract cassava starch. Doing Company is a enterprise specialize in designing and manufacturing starch processing equipment, we can not only offer complete set cassava starch processing machine, but also provide practical and feasible operation plan for how to extract cassava starch, customize complete set starch production line for customers, and provide reliable technical support and quality assurance.
